VEMS build instruktions [1]

The I dear is to connect the vems test board in-between vems and the wire harness plug and play or use for test in the lab.

1: simulate 36-1 trigger

2: simulate 60-2 trigger

3 secondary trigger

4: four egt values fore calibrate temp. Toggle switch

5: led diode on all output

6: build in 2x100 ohm resister for calibrate wbo2 sensor

7: 2 rca connectors for simulate trigger input via laptop pc

8: detect Flyback errors

If you have any comments to the vems tester please leave a note, any suggest are welcome

Regards Peter

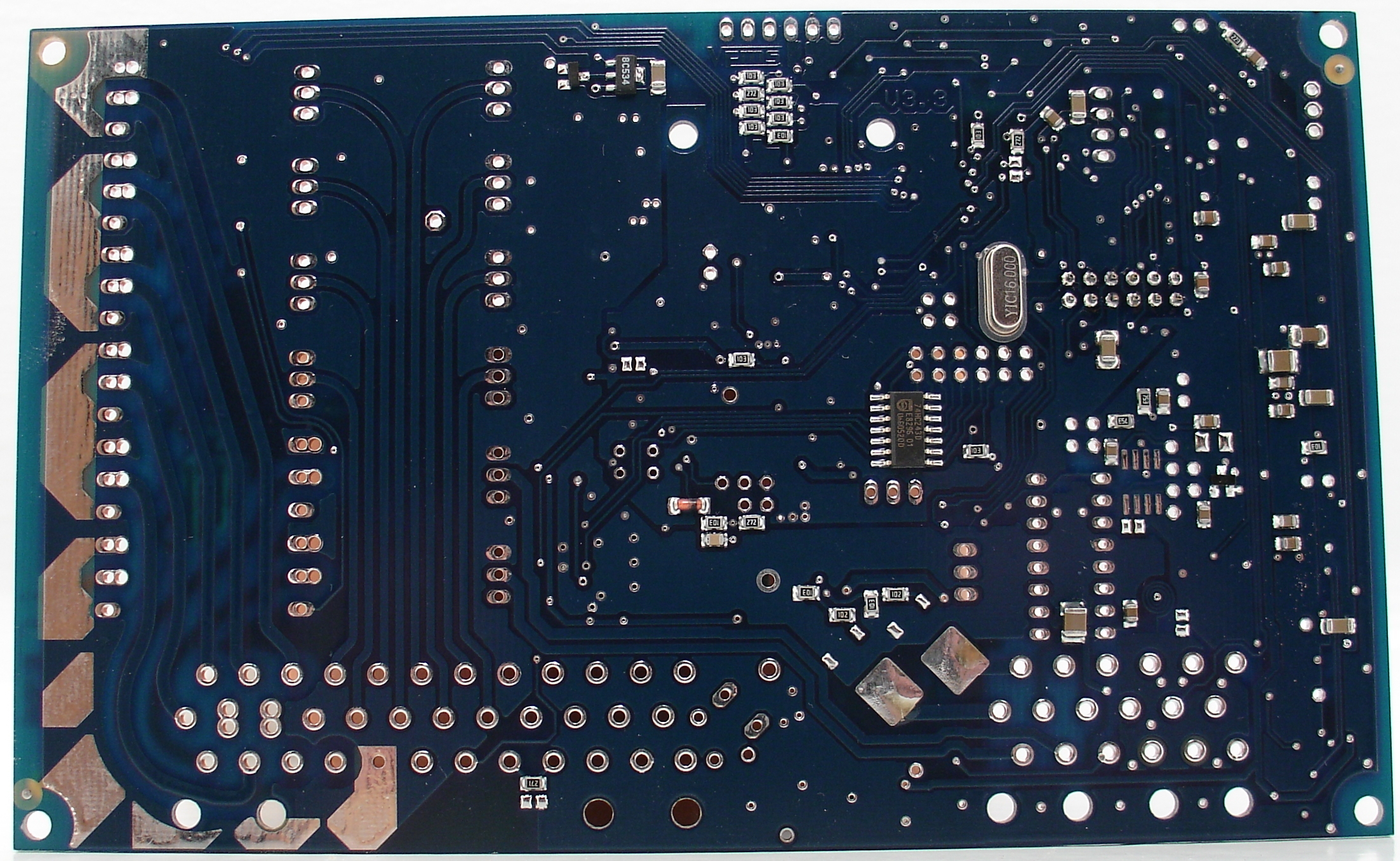

[Image V3.3 Solder side]

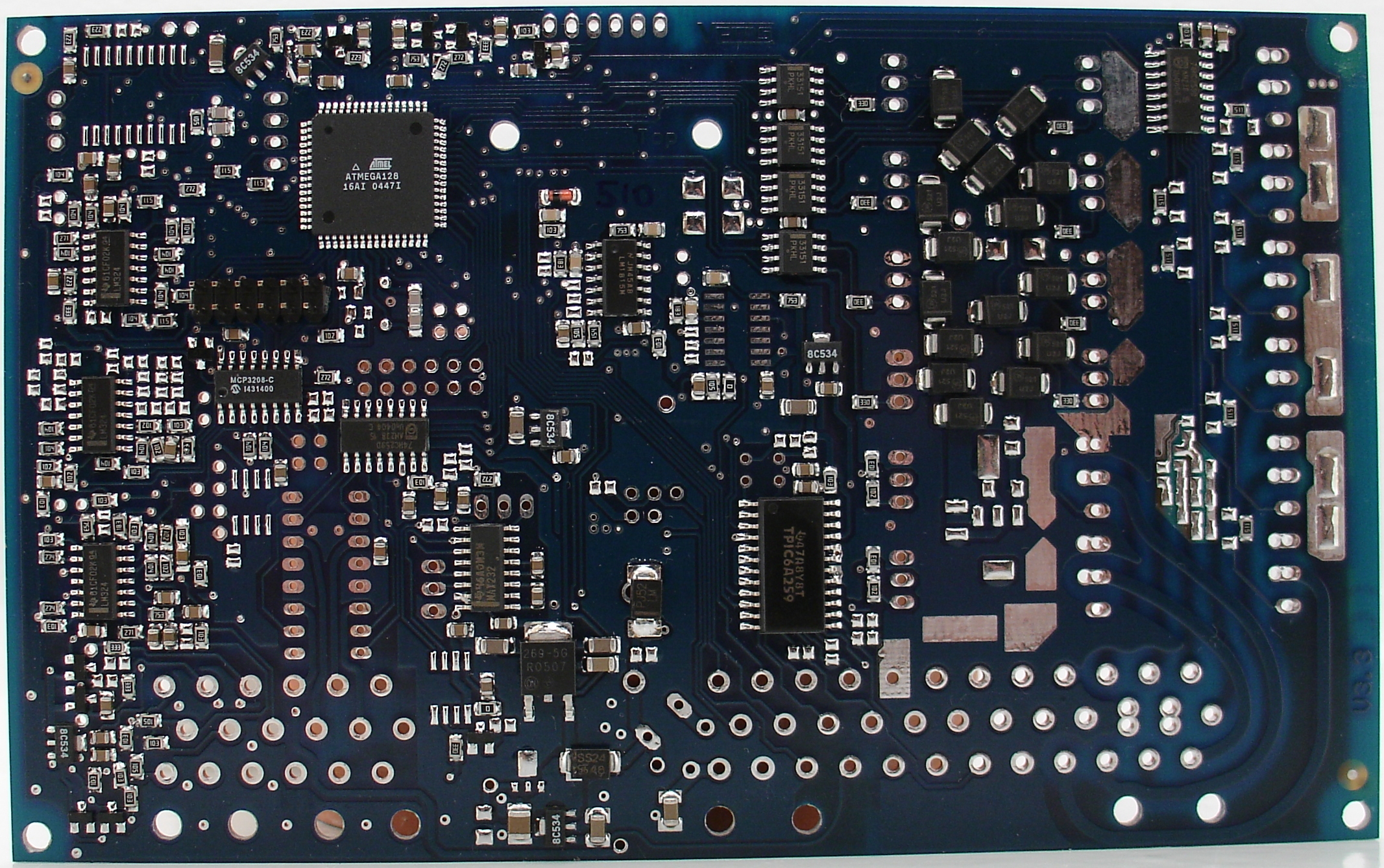

[Image V3.3 prosessor side]
