This schematic is NOT done yet and there can become errors.
Please write your comments
- 6-aug-2007. Made new relay fore injectors as Marcell suggest.
- See VemsAudiAan and audi expert MembersPage/TeppoKalske

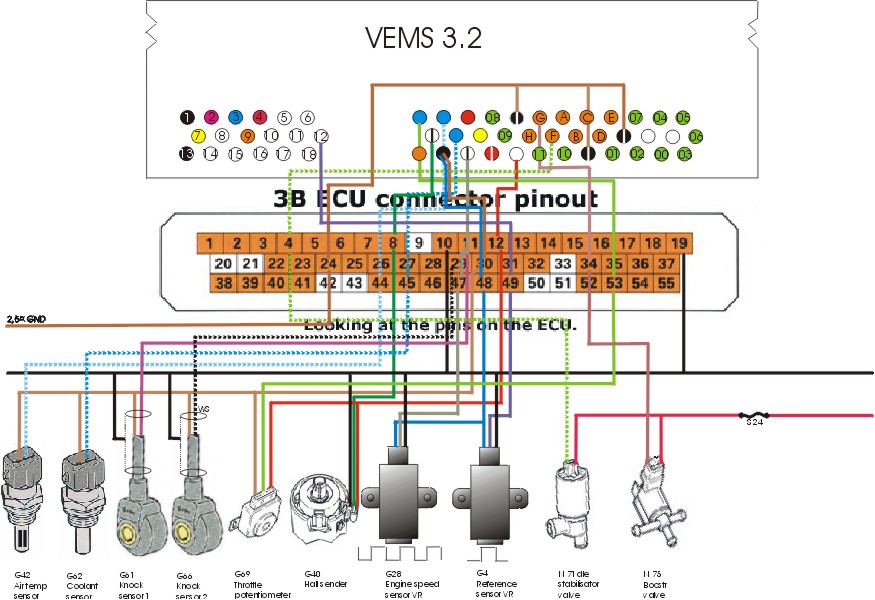

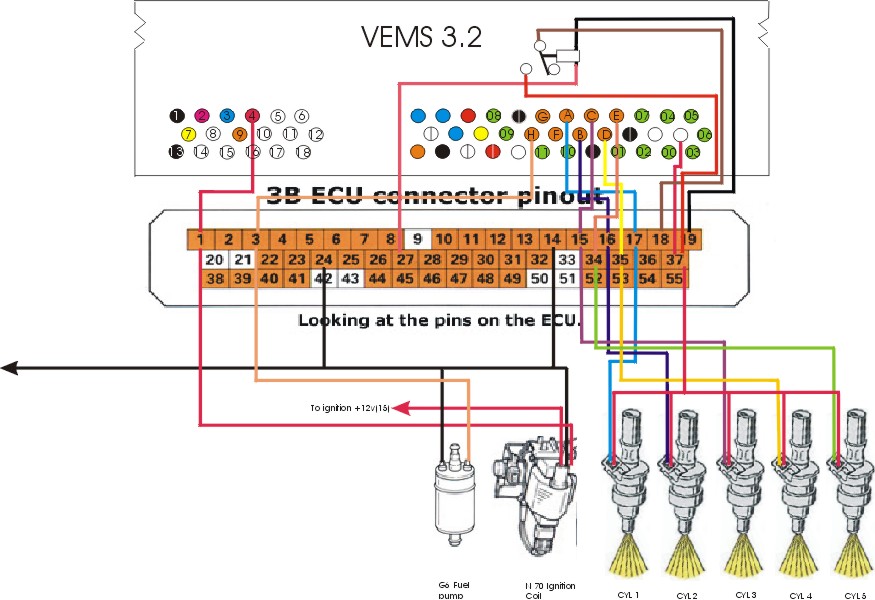

- 3Bpin37 is flyback (EC36pin23). Injectors are supplied from the ECU via this pin (3B is different from the AAN/ABY/ADU in this respect). You need a small 20..25A relay powered by 3Bpin27 and GND (when ignition is on), that switches 3Bpin18 (constant +12V, even alive when ignition is off) to 3Bpin37. Don't draw much (2A+) current from 3Bpin27 because we fear that might damage the ignition switch (we didn't try or measure though).
- we use 4 stepper outputs and a logiclevel ignition output on an extra connector to make 5 COPs possible
- 5 power IGBT outputs also possible
- if the distributer of the 3B engine is used, than 1 logiclevel output (usually stepper-D connected to 3Bpin1) is fine
