daily car.

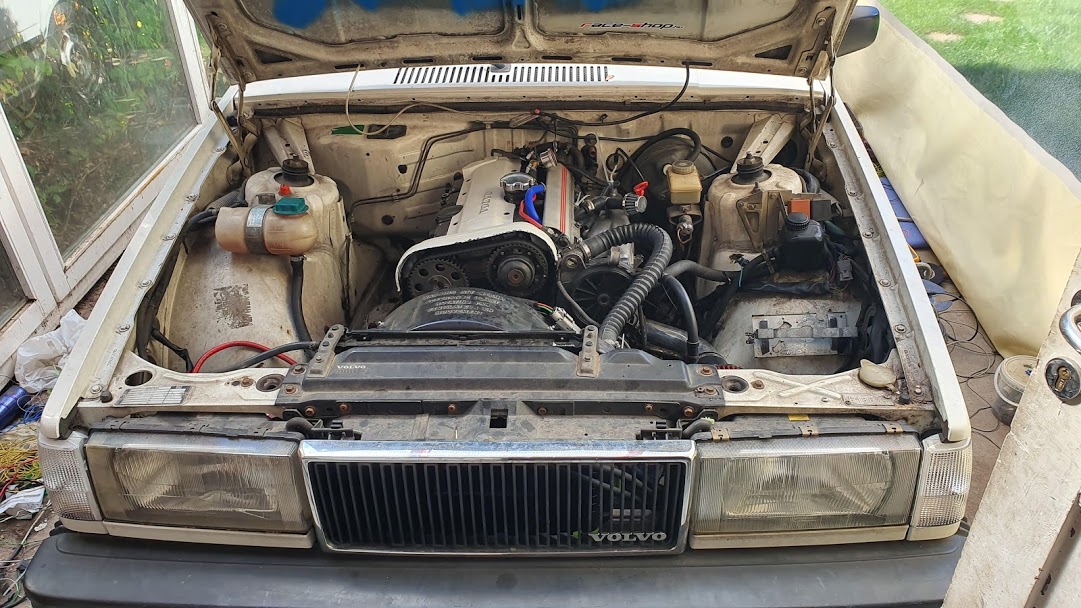

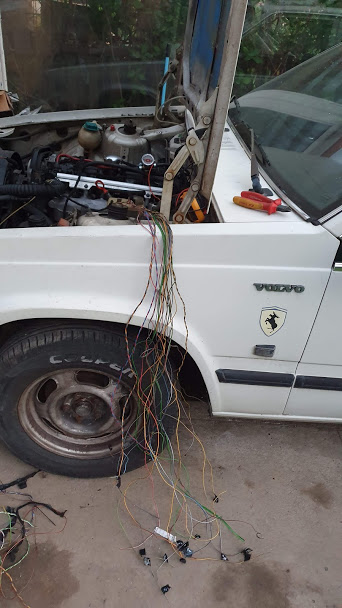

swapped engine from v60

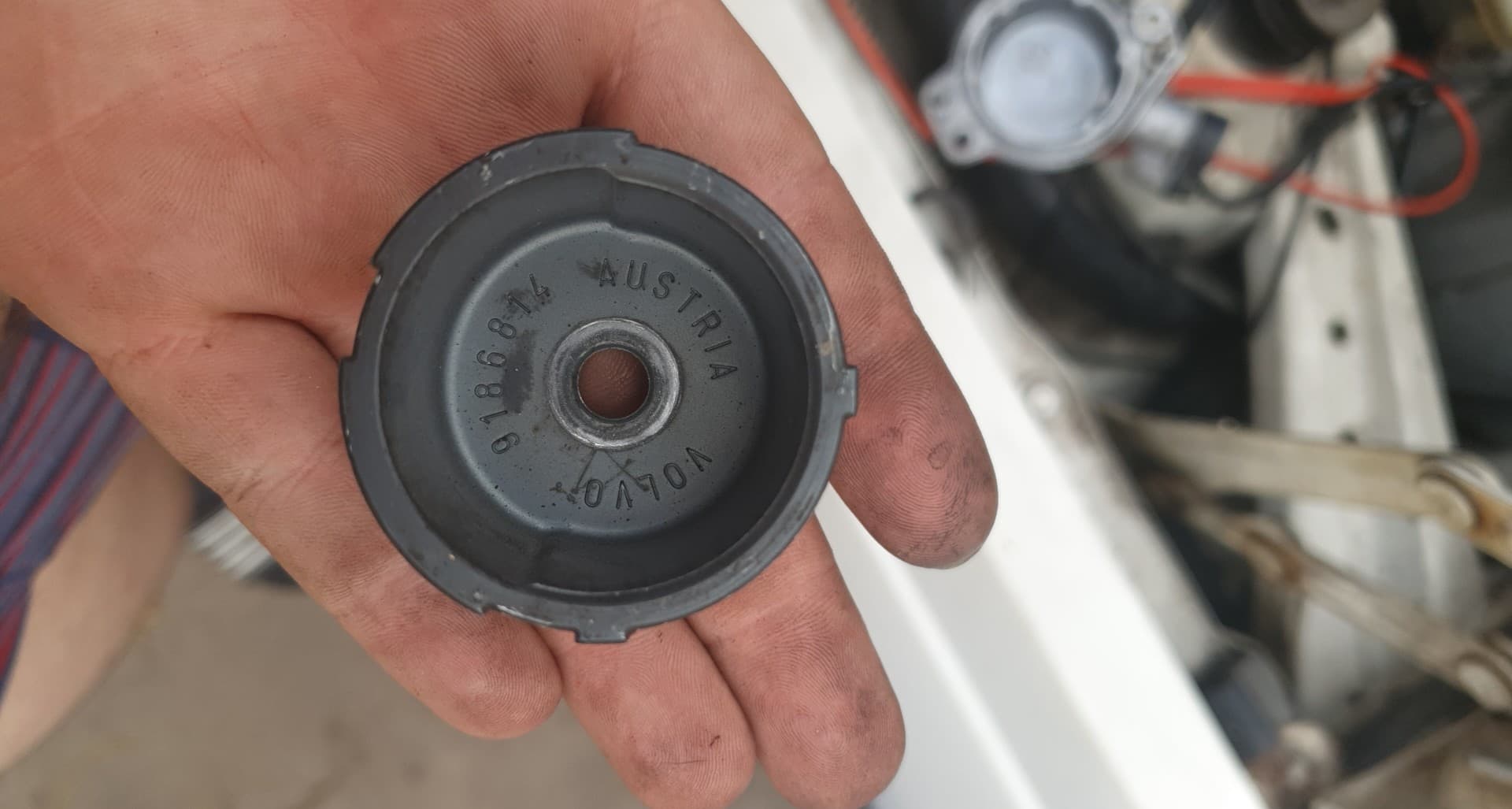

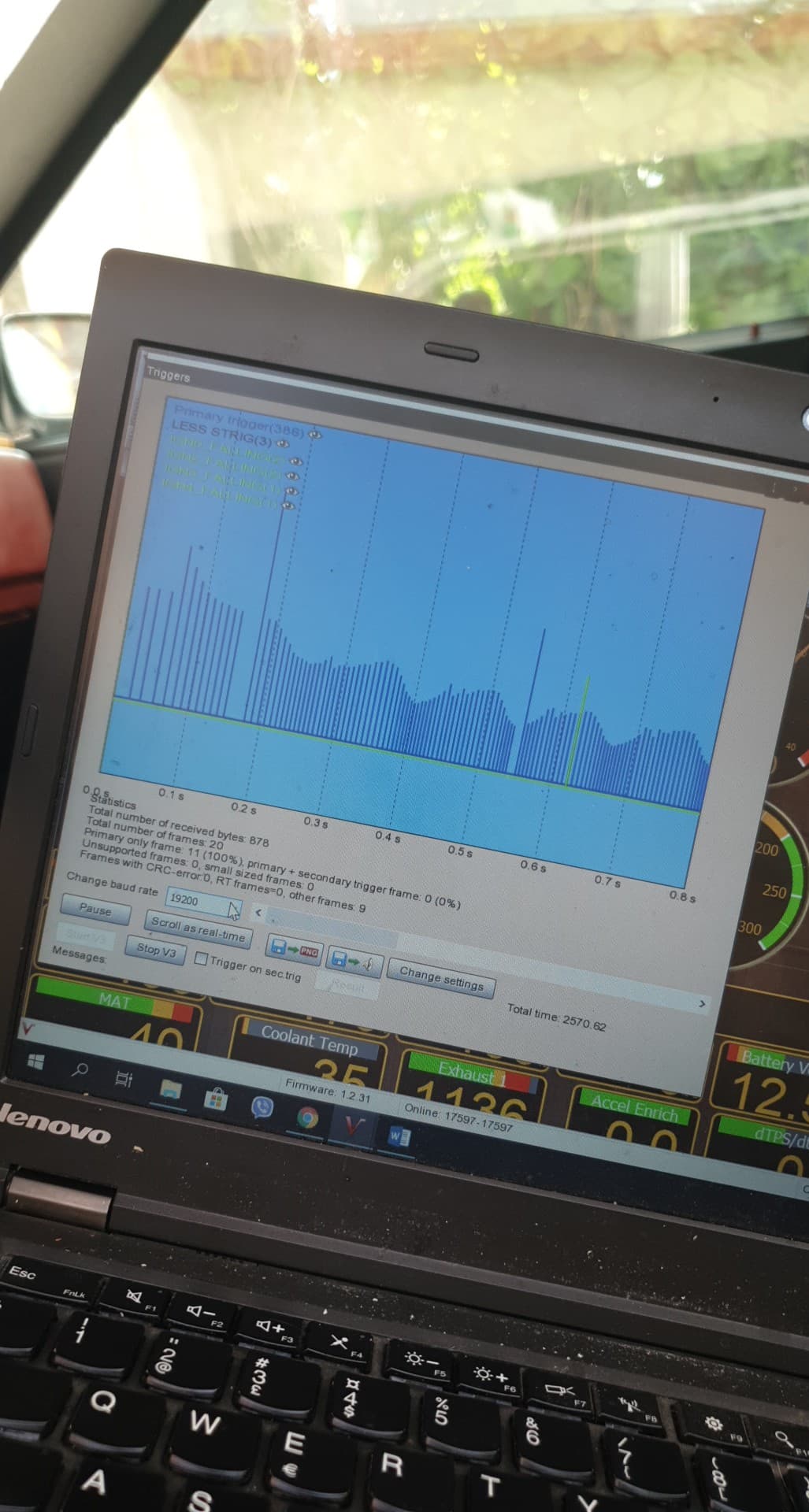

THIS IS THE OEM SECONDARY TRIGGER WHEEL FOR CAM. IT NEEDS TO REPLACE TO 850 T5 1 TEETH TRIGGER FOR SYNC:
144+20=164 crankdeg = 15*6 + 74
first trigger tooth should be 15
"TDC after the trigger": ign tdcdelay = 74 crankdeg
of course, rotate ignoutputs by 1 to match the desired spark position
Coolant temp sensor resistance table:
Temperature F (C).....................Resistance (ohms)
32 (0) .............................................. 7300
68 (20) ............................................. 2800
176 (80) ............................................. 300
212 (100) ............................................ 150

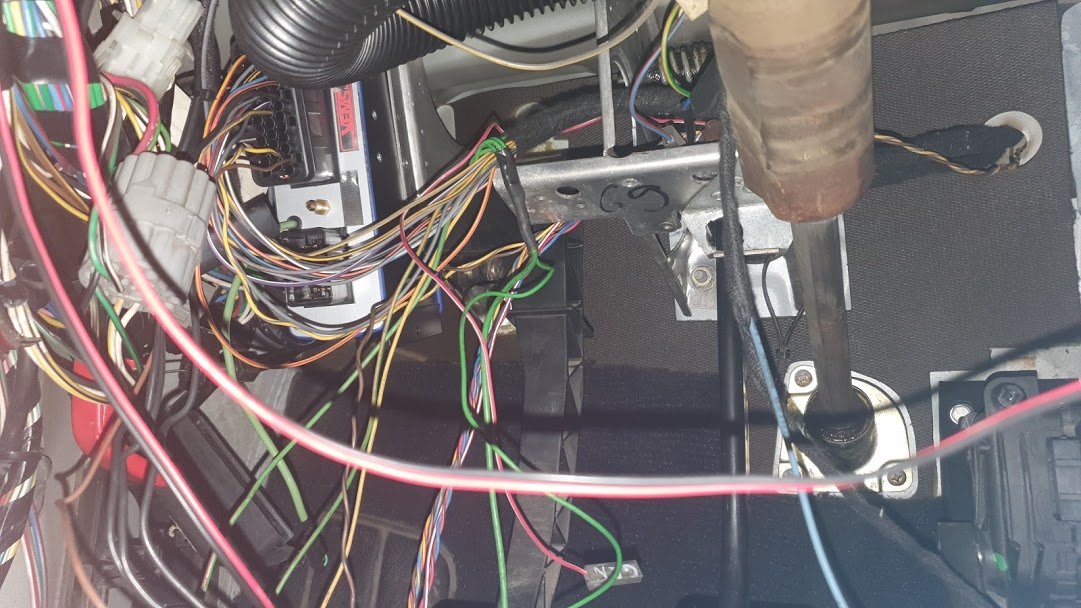

- COIL 1 12+ red
SIGNAL green/white
gnd yellow
- COIL 2 12+ red
SIGNAL brown/white
gnd yellow
- COIL 3 12+ red
SIGNAL green/orange
gnd yellow
- COIL 4 12+ red
SIGNAL white(bone)
gnd yellow
- COIL 5 12+ red
SIGNAL green/purple
gnd yellow
- TPS SIGNAL orange/white
gnd brown/white
- CLT SIGNAL yellow/grey
- INJECTOR 1 SIGNAL jel
- INJECTOR 2 SIGNAL grey/orange
- INJECTOR 3 SIGNAL grey/red
- INJECTOR 4 SIGNAL grey/black
- INJECTOR 5 SIGNAL grey/white
- CRANK jel blue

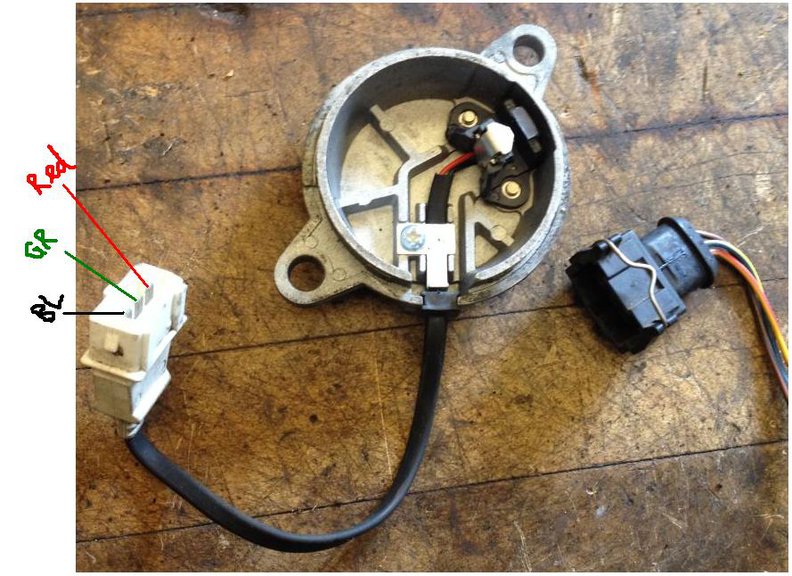

- CAM 5+V yellow/red
sens gnd brown/black
- fuel pump [relayed] relay gnd brown
