Fitting guide for Vag 4 cyl oem 60-2 trigger wheel

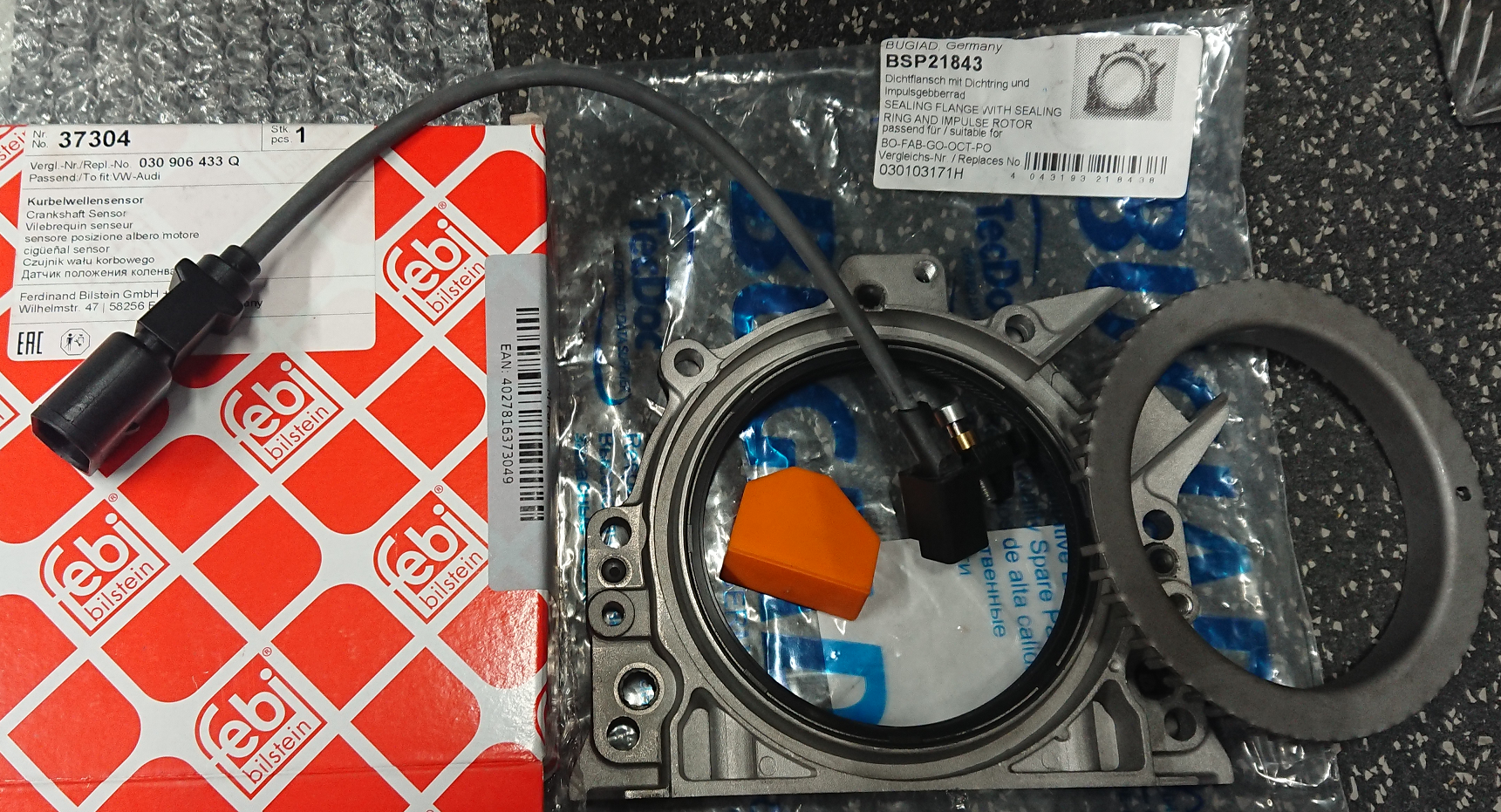

Oem part numbers
- Triggerwheel 030103171H
- Hallsensor 030906433Q
How to

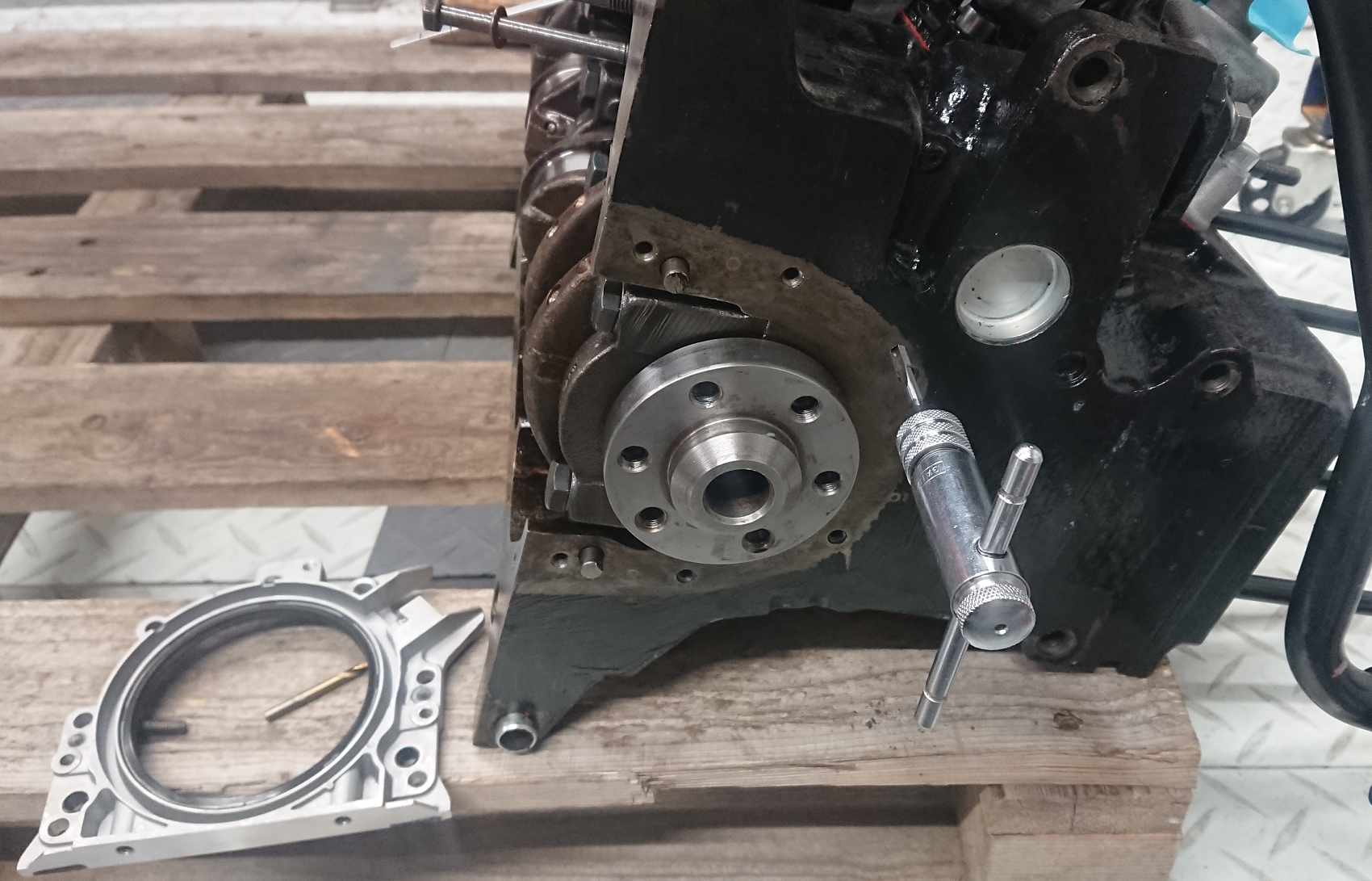

- I chose to drill and tap the offset hole on the block. Caution it will go trough block so use Rtv on that bolt

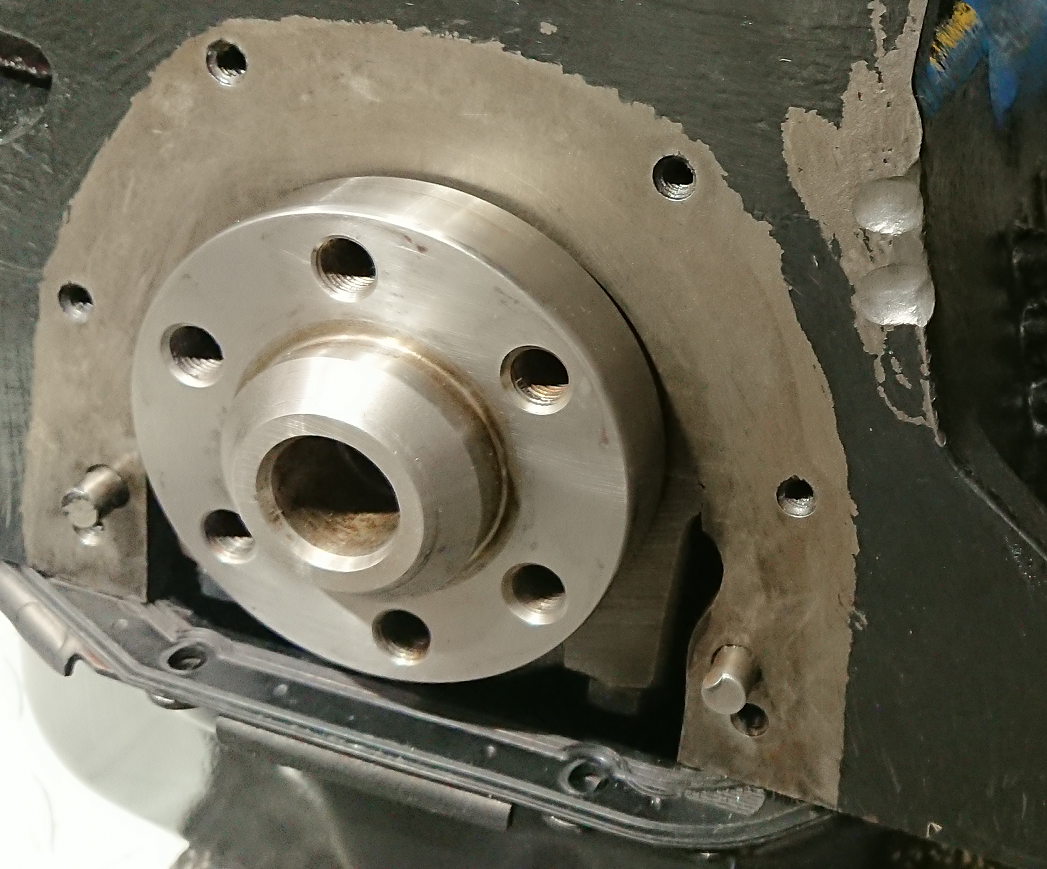

- The block needs to be grinded down to clear the Hall sensor

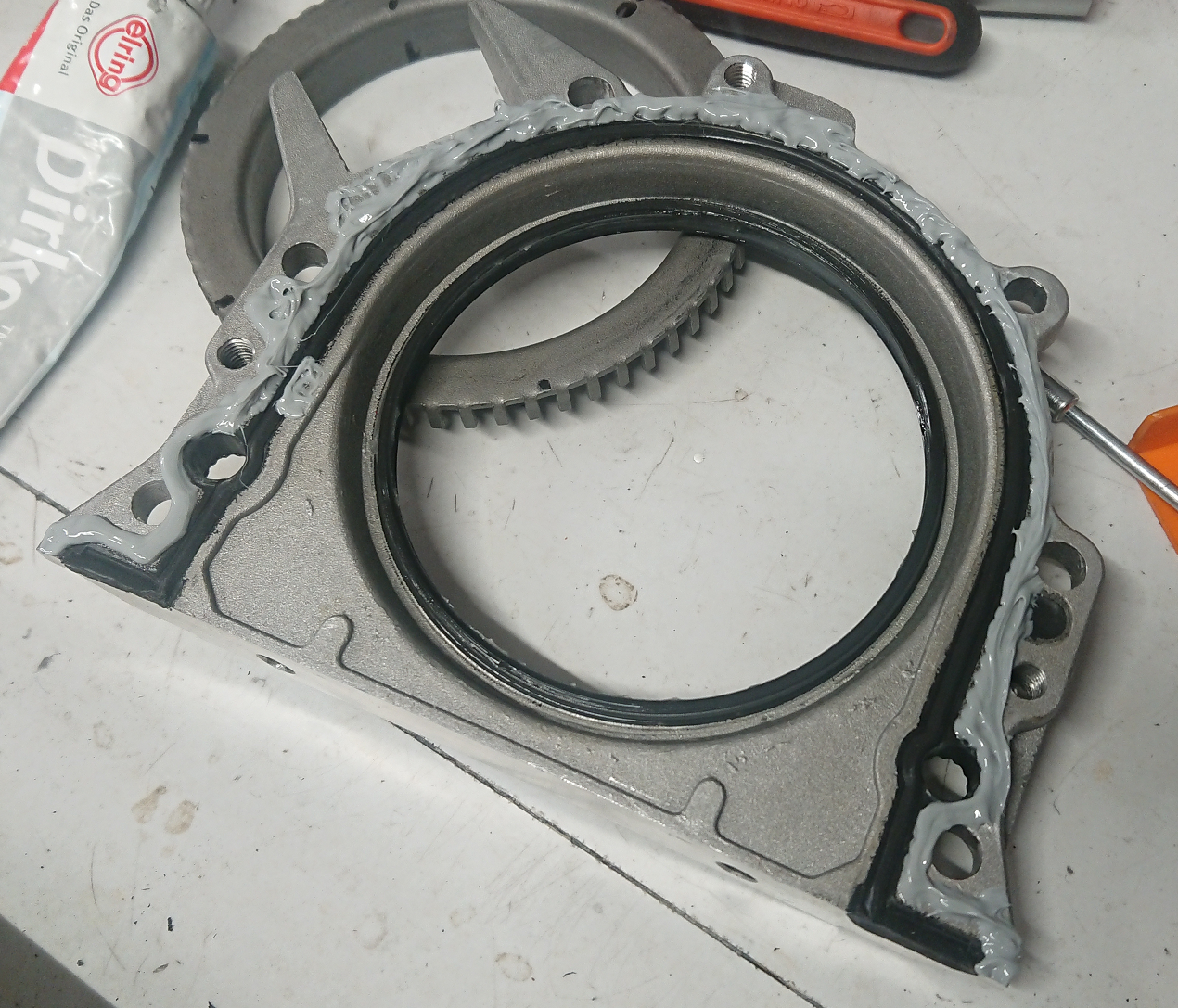

- Use Rtv around the trigger flange not the usual paper gasket

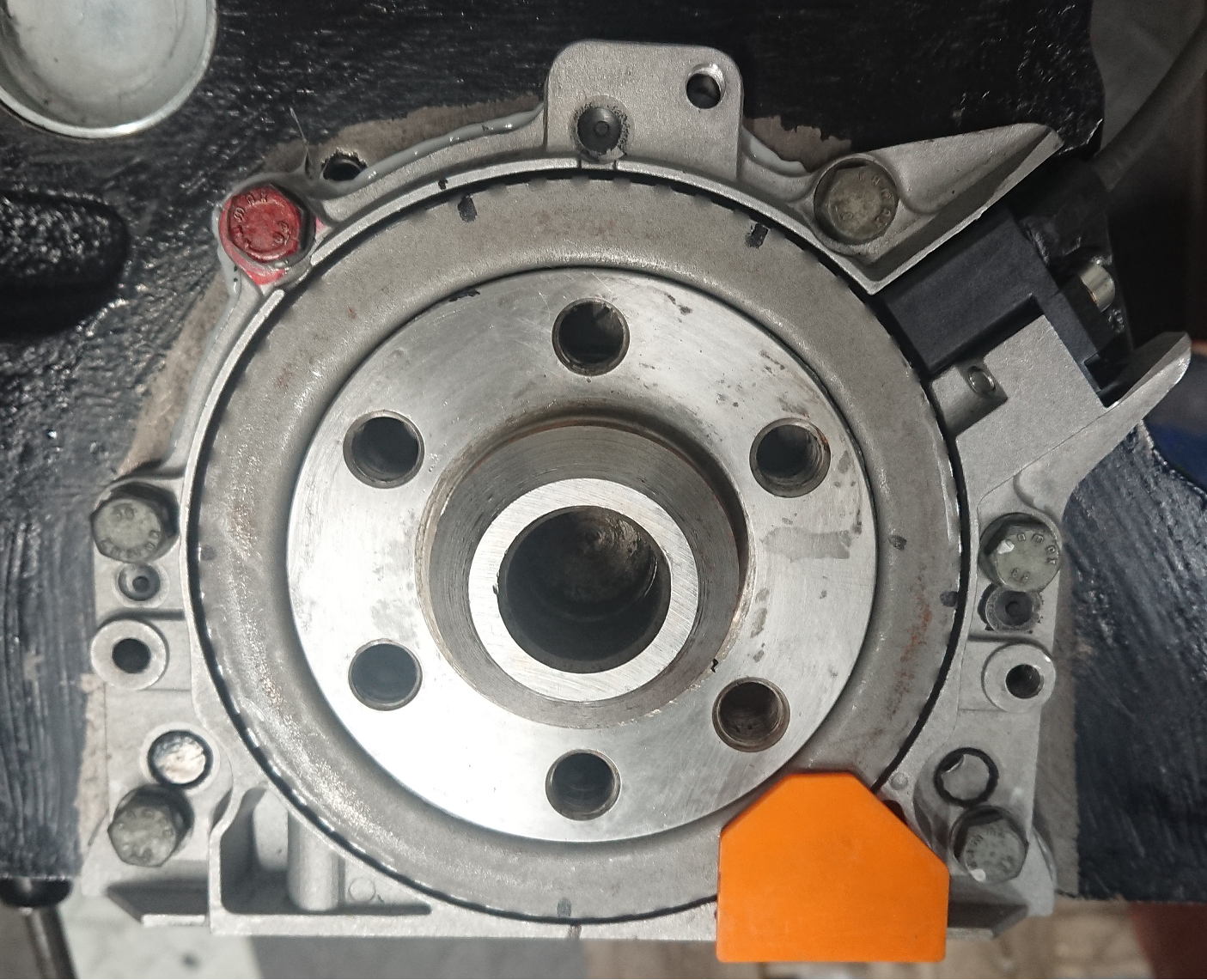

- To not press the triggerwheel on to far, gently tap it on the crank and press it on with help of the flywheel. use the orange clip for TDC alignment
- Now it should be around tooth 14

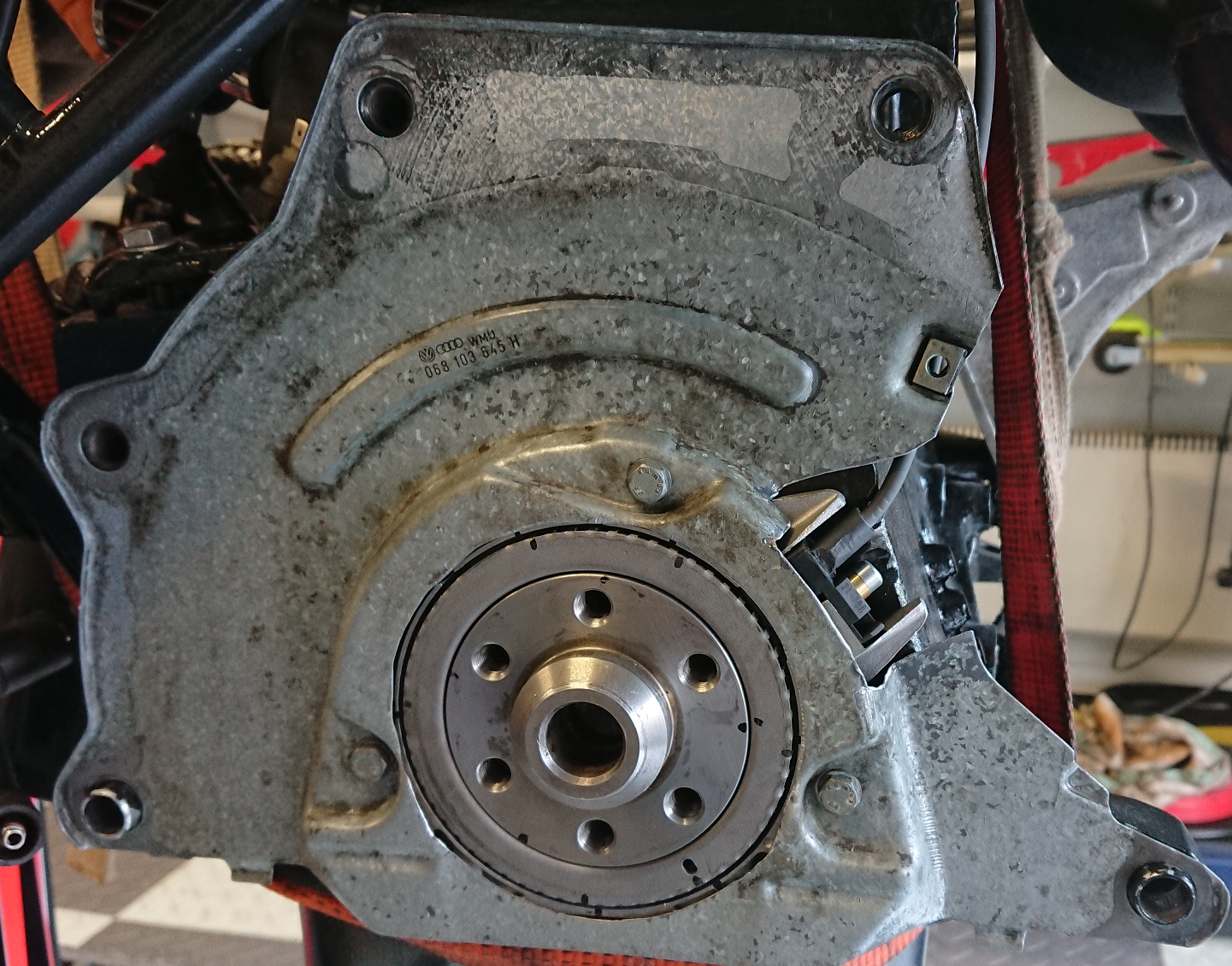

- Clear and Grind down the backing plate to make it fit over trigger assembly
- It will now start if you select the default Vag 60-2 trigger Setup in Vems. fine tune from there
Oem vw crankshaft with trigger wheel is around tooth ~14
In Megasquirt around 78-84
