I developed a Plug and Play solution via adapter harness for Porsche 944 Turbo aka 951. It uses two ECU's, DME (Motronic 1.0) controls fuel and spark, the other (KLR) listens for knock and controls boost pressure.


PROBLEM With some installs (all kits are equal, tried the same ECU+adapter on other car, works fine) we have gotten "tooth length error". Totally random occurrance (out of 80+ kits around 7-8 have experienced it). Always happens at around 5k rpm.

Second issue: using scalloped flywheel with 132+1 triggers renders rpm reading not working, shows less primtrig and too many sectrig at the same time.

Here's photo of the subject: Spec-Flywheel.jpg

Would there be any solution how to get it working with it?

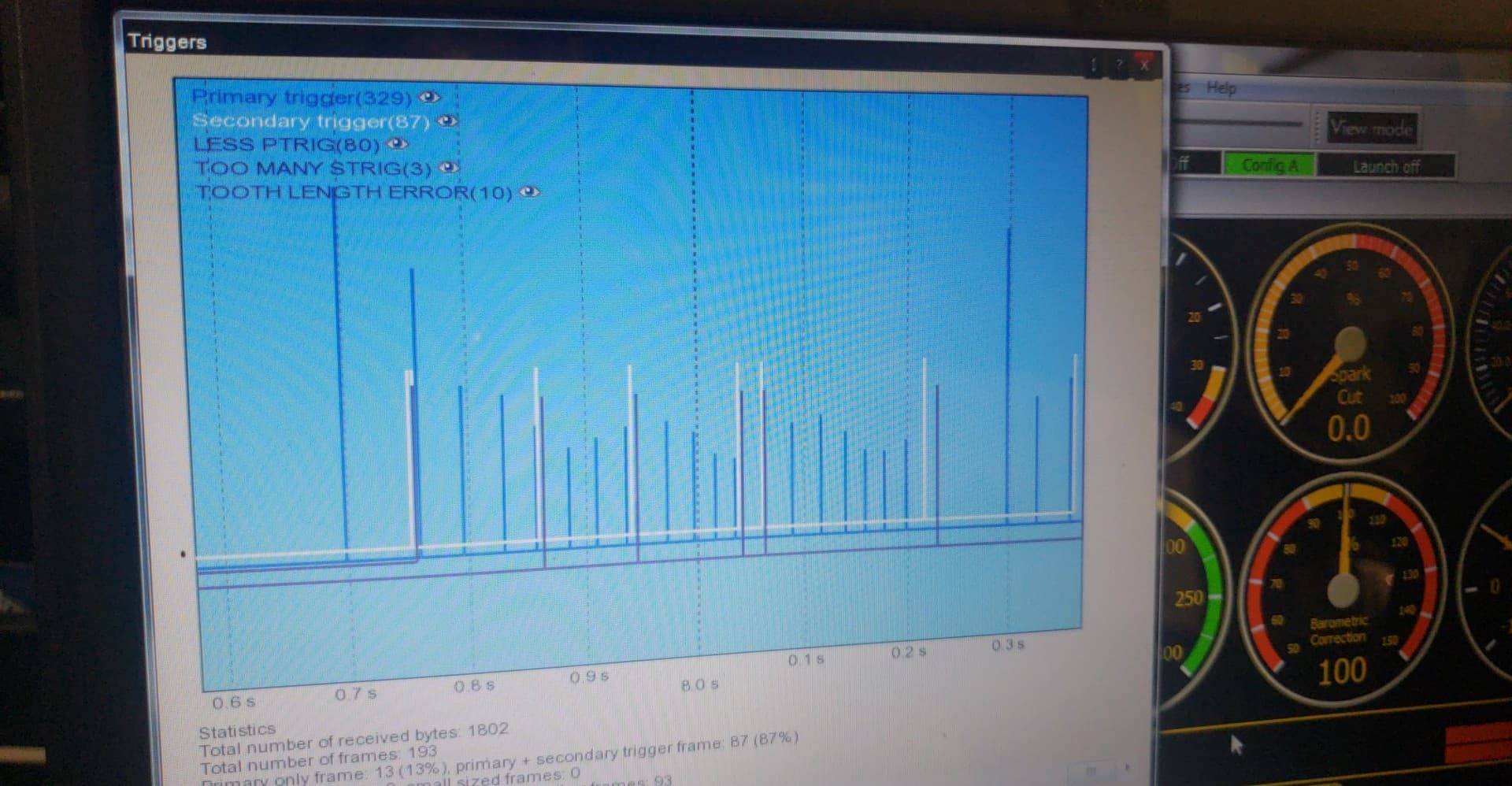

Here's how triggerlog looks with this flywheel:


All the necessary signals are available with stock harness, including healthy grounds. Here are pinouts:

DME:


KLR:


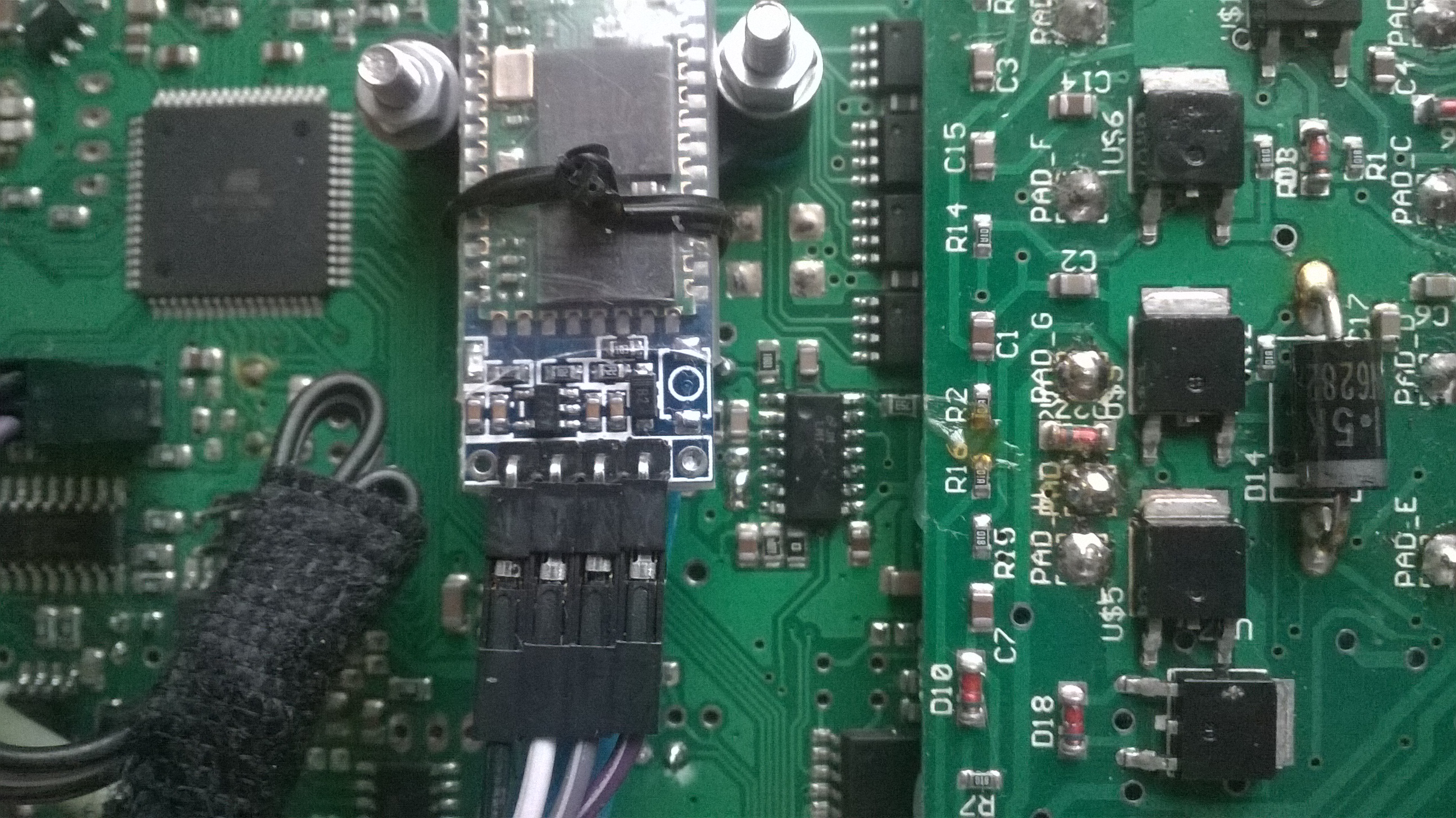

Here's my solution:


The car has 132+1 auditrigger crank trigger without cam sync, it uses distributor. Injectors are connected in pairs.

Now here's my issue.

I tested the setup on the running car and all sensors seemed to work except I did not get rpm signal. After disabling secondary trigger rpm showed which means tooth wheel reads fine. Secondary trigger is not visible in triggerlog also.

I used latest VEMStune and chose 4cyl_Porsche_132+1 configlet with divby11.

I configured secondary trigger per http://www.vems.hu/wiki/index.php?page=GenBoard%2FManual%2FInputTriggerHardWare


I also tried to reverse 2nd VR wires, no effect.

EDIT: Trigger signal issue was solved, a missing pullup on the bottom of the board.

Here's vemscfg: https://www.upload.ee/files/4472538/944_Turbo_Stock.vemscfg.html


Trying to get the factory in-dash boost gauge to work. It appears to be using 0-4.5v signal from the KLR ECU and is linear voltage. 1 bar is 0.45v. Main goal is to make the gauge show 1 bar as real 1 bar not absolute like in factory ECU.

Q: Is it possible to use VEMS internal MAP sensor signal for this through some resistors or something?

A: Already answered here, we have a dedicated function for this called boost gauge: http://www.vemssupport.com/forum/index.php/topic,2391.0.html


Here's a topic in Rennlist about the boost gauge and how one guy got it to work as standalone: http://rennlist.com/forums/944-turbo-and-turbo-s-forum/434511-q-for-electronics-techs-boost-gauge-control-2.html
