Measuring ignition advance

With a tooth wheel as crankshaft trigger, the genboard can be used to reconstruct the ignition map of an existing distributor or OEM ECU. Since the angular speed and position of the crankshaft are known, it is straight forward to calculate advance. When the config is setup to use a tooth wheel as primary trigger, the advance is measured by letting the secondary trigger tap the ignition coil.

If the firmware is compiled without MS_COMPATIBILITY defined in my_make, the measured advance and dwell can be logged using a program such as MegaTunix. Finally the log needs to be filtered and an ignition map generated, 'bin/linreg.pl' is recommended for doing that automatically.

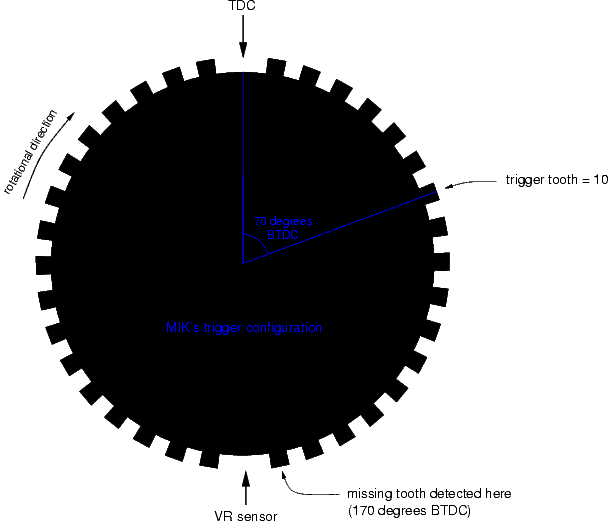

Michael uses a 36-2 teeth trigger wheel with TDC at the missing tooth. The missing tooth is not in the recommend position (max advance + 1..40 degrees) thereby potentially introducing inaccuracies when engine speed varies. trigger_tooth in config is set to the value 10 (dec) which delays the trigger by 10*10 degrees (360 degrees / 36 teeth) and reduces the inaccuracy.


The question is when will the missing tooth be detected? This is important because:

180 degrees = 10*10 degrees - tdc_delay/2 - unknown_detect_missing_tooth_delay

tdc_delay (in this case 70 degrees) can compensate for the unknown delay, but the measured ignition advance table will be offset by a constant. Since the LM1815 gives a rising edge pulse when the VR sensor is in the middle of the tooth, the delay will be 10 degrees after TDC as in the picture.

A 20 minutes drive with logging of ignition advance at various rpm/map load points:

x = rpm, y = map [kpa], z = advance [degrees]

(for the interested: ADU9336 ignition control box used in ex. MG Maestro)

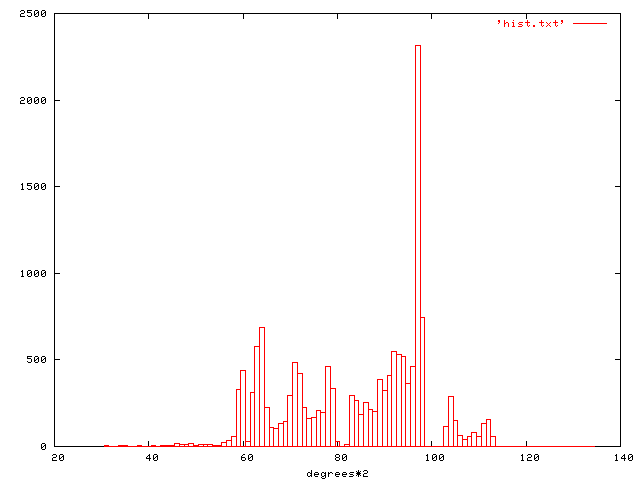

The corresponding histogram showing frequency of advance degrees*2 observations:


logfile: http://caffrey.dk/dump/log_20040318.zip

I extracted statistics from it: simple averaging near gridpoints and running linear regression near the lines between 2 gridpoints: see bin/linreg.pl for both (Marcell).

The holes in the map are indeed strange, a possible explanation is the old ignition ECU having problems generating certain (30/40/50 degrees) advances. It's almost certain that the old slow ECU is processing the high priority tooth-detection interrupt in that holes, therefore it cannot emit spark.

A couple of interesting figures from the log file:

WOT @ 4000 rpm: 38 degrees

part throttle (50 kpa / 3000 rpm): 55 degrees

idle (30 kpa / 1000 rpm): 30 degrees

Measuring dwell period

Besides measuring when the ignition event happened, the duration of the event is also measured. This can be used to measure the coil charge time - the dwell period. Of course the duration of any other signal can also be measured, ex. injector opening time of existing ecu.

Michael's coil is specified to have a 0.71-0.81 ohm resistance at 20C degrees. Measured dwell is around 4.4 ms.

[A log file] showing how the dwell period changes as a function of battery voltage.

First column is battery voltage (I'm not sure about the voltage divider, max seen battery voltage should be around 13.5V), second column is dwell period in ms.


Measuring without MegaTunix

Is there any possibility to measure ignition advance with a perl script or any other method?

Checking comm.c MTsendRTvar?() I think the following my_make defines (the ifdefs look somewhat hell, dropping a few altogether and replacing others with runtime config dependent conditions such as the relevant bits of secondary_trigger would be nice) are of interest to you:

  • LOG_ALIEN
  • SEND_DWELL_NOT_IAC
  • CAPTURE_ALIEN_ECU
  • MS_COMPATIBILITY NOT defined
  • MSNS NOT defined

Don't forget to enable alien measurement in config.secondary_trigger.

There is a trick that enables automatic dump of the realtime variables again-and-again (it's fixed since the released 1.0.12 version, check in CVS STABLE1_0). mde80 sets debug.enable_flags=0x80, therefore enables this feature (you still have to query the runtime variables once, so the full command sequence becomes "Man mde80 bye A" without spaces). Transmitted bytes can be captured and saved to file from TerminalProgram or perl.

Snippet from comm.c:

if (debug.enable_flags & _BV(7))
                pushfunc(&MTsendRTvar, MT_RTVAR_COUNT);

There is an alternative method, that is enabled by defining CAPTURE_ALIEN_ECU in my_make and mde20 command. This prints in a nicer format, although less data than above method. Snippet from fuelcontrol.c:

#ifdef CAPTURE_ALIEN_ECU
                if(((debug.enable_flags & _BV(5))) // don't enable mde.. bit0 at the same time !
                   && (*comm_TX_plainbytes == 0)        // the signalling byte is already zeroed by comm.c (gcc-at-powerup
)
                   && ! comm_buffer_full()){
                        alien_detailed_log();
                }
#endif

You might want to disable WBO2 in my_make, it might result in slightly better precision (probably unnoticable. check SIG_SECONDARY_TRIGGER ).

The alien measurement always measures secondary trigger pulse position relative to primary trigger: either
