MembersPage/ErikEnglund/AudiECUrebuild

Boxnumber, 2274

This is an Motronic55-box for 3b engine.

Im changing the trigger-input types to hall for both primary and secondary trigger.

The jumpers and the resistor for primary trigger is already done(SJ2, SJ6, R30).

Need help with the secondary trigger setup.

We want to use the original wiring for secondary trigger (going to use the hall-sender in the distributor)

Should something be done to the wire from motronic-pin 8 ?

If so, where should the secondary trigger input be connected to the board? Or is it OK when changing the jumpers?

De-jumper SJ7:

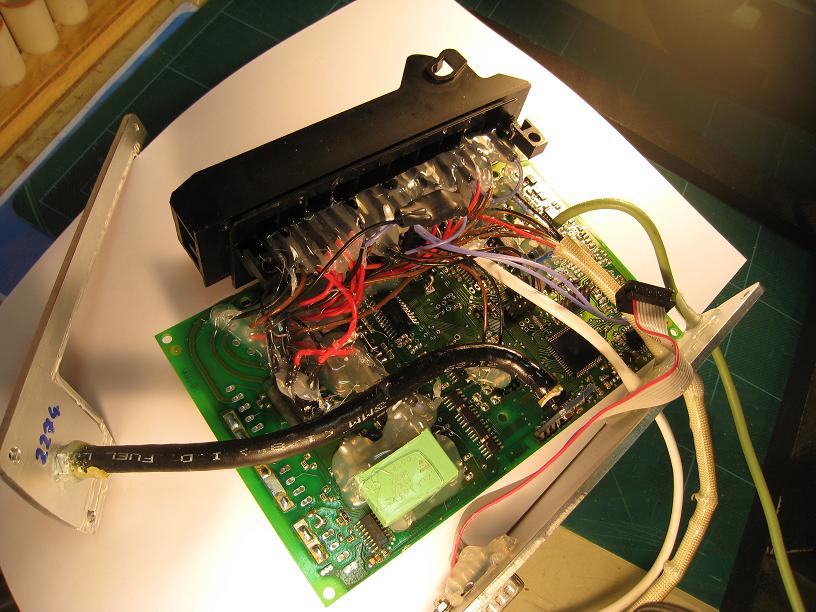

This board looks like this.


So i dont realy know what to do with the information shown on this picture:



Thanks in advance.

/Erik
