GenBoard/VerTwo/PCBLayouts

PCB Layouts for the Genboard v2.2

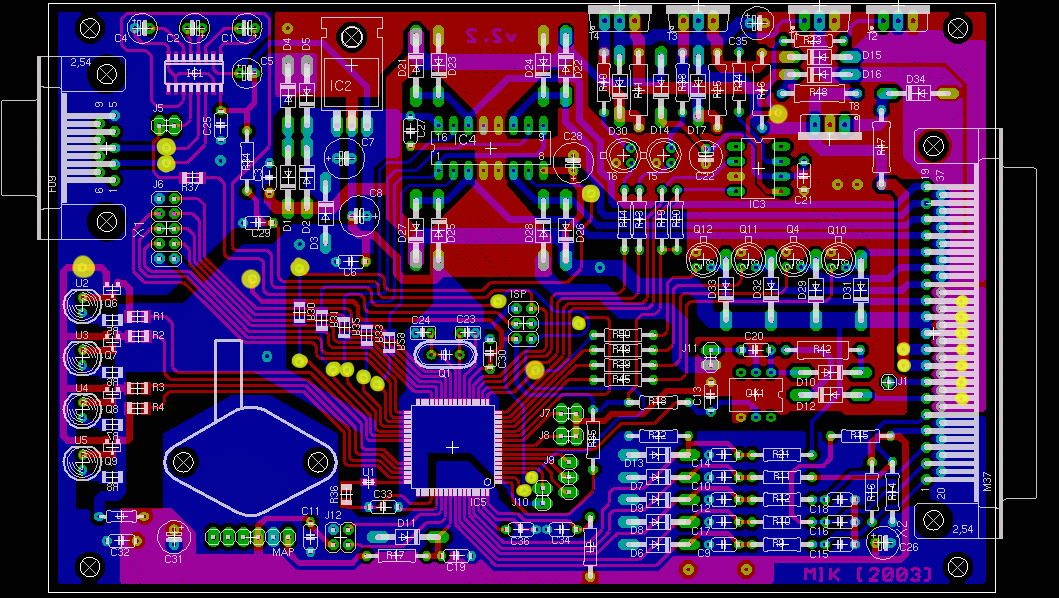

The entire GenBoard v2.2 (the old, close to initial design) PC Board with the VIAS highlighted in Yellow. The new, incredible v3.x series (only v3.0 upto 2004.March) was manufactured hole-plated, with 0805 SMD which (besides being easier to work with than throughole) made much more nice functions available, see GenBoardIamInterested?

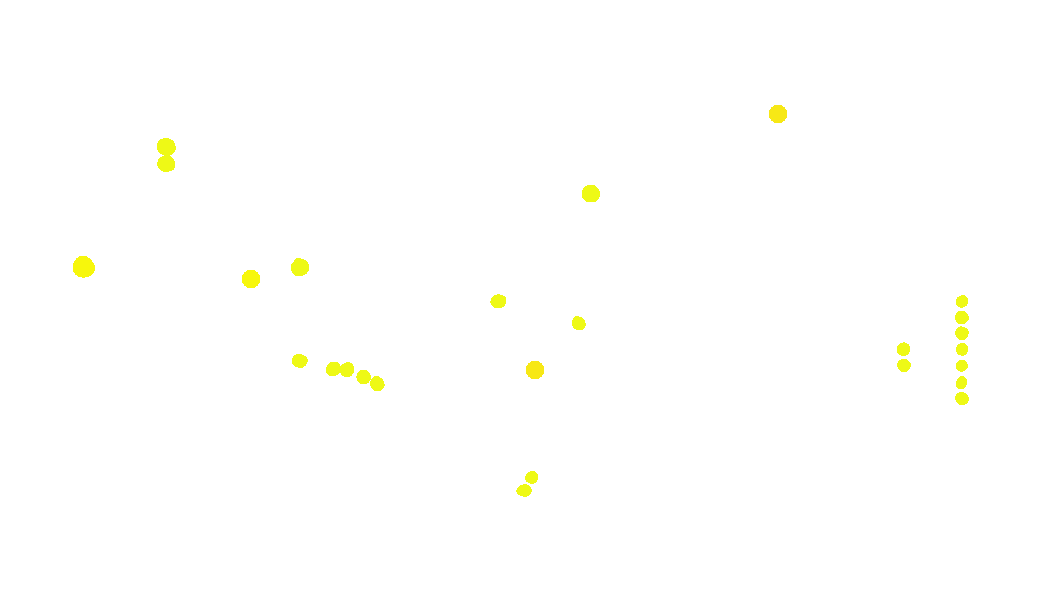

The image with only the vias visible so you can see where they are located a little easier.
